Wire Stripping, Cutting and Bending Machine; Jacket Wire Cutting, Stripping and Bending Machine; Single Core Cable Bending Machine; Bending Wire and Cutting Machine

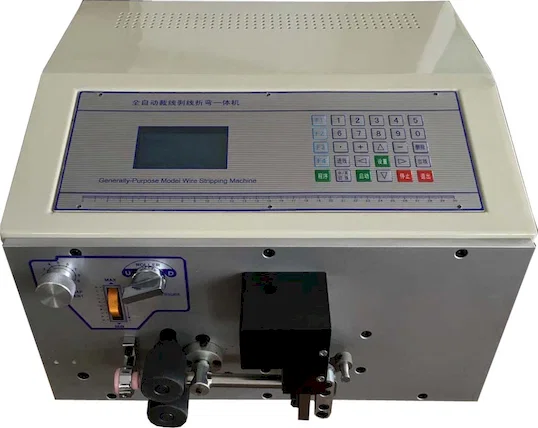

Model of Wire Stripping, Cutting and Bending Machine: WPM – 09ZWJ, applicable for wire cross – section of 2.5 – 16mm²

Wire Cross – Section: 2.5 – 16mm²
Conduit Diameter: 10mm
Stripping Length:
– Head side: 0 – 20mm
– Tail side: 0 – 20mm
Cutting Length: 1 – 100,000mm

Features:
Fully Automatic Computer – Controlled Wire Stripping Machine
Adopts advanced automation technologies from Japan and Taiwan. It is a type of numerical control equipment.

Applications:
Widely applied in the electronics industry, as well as in the processing of wires for city facilities, electrical appliances, motors, lamps, toys and various other products.
It is optimal for stripping wires such as PVC, Teflon, silica gel lines and glass fiber.

Specifications:
Available Wire Cross – Section Range: 2.5 – 16mm²
Conduit Diameter: ￠10mm
Cutting Length: 1 – 100,000mm
Cutting Tolerance: ±(0.002×L) (where L = Cutting Length)
Stripping Length:
– Head: 0 – 20mm
– Tail: 0 – 20mm
Middle Stripping Section: N/A
Speed: 1,000 – 2,000 pieces per hour
Display Method: English LCD
Drive Mode: Dual Drives
Blade Material: Hard tungsten steel
Bending Modes: U – shaped, Z – shaped, clockwise, counterclockwise. Adjustable bending angles include 30°, 45°, 60° and 90°.
Power Supply: 220V/50Hz or 110V/60Hz
Power Rating: 650W
Dimensions: 390X350X255mm
Weight: 33kg

Frequently Asked Questions (FAQ):

1. Price Terms
The price is calculated on an EXW/FOB basis. Should you require CFR or CIF terms, please provide us with your delivery port. We will then provide you with the CFR or CIF price for your reference.

2. What is your main market?
We have a diverse range of clients from the Asian, African, American, and European markets.

3. Can you provide a professional solution based on our product?
We consistently recommend appropriate solutions tailored to the products, aiming to meet clients’ cost-reduction requirements.

4. Can we provide a sample for testing?
Yes, we would be delighted if you could provide us with a sample for testing.

5. Do you test all goods before delivery?
Yes, all products are 100% tested prior to shipment.

Our ™ products are rigorously tested and come with a one-year warranty, excluding consumable parts. The products are guaranteed to maintain good quality during this period.
In the event of any quality issues with the main parts, we will promptly provide new parts and send them to you. We will also offer detailed technical support and video demonstrations to assist you with the replacement. Alternatively, our experienced engineers can help resolve the issues. All inquiries and problems will be responded to within 24 hours of receiving an email, phone call, or message via other communication tools.
