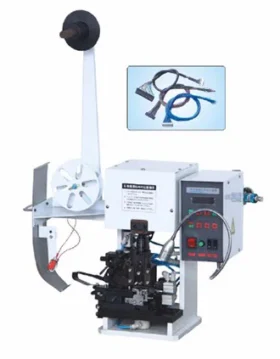

DC Terminal Crimping Machine, Ac Terminal Crimping Cable Stripping Machine, Automatic Crimp Strip Machine. Wire stripping and crimping terminal machine (WPM-2008A2)
1. Wire stripping and Terminal Crimping can be done in a one-time cassette mold holder and skinning system combination to achieve a coherent motion machine.
2. High-precision parts assembly, adjustment method for the tuning screw, precision is more accurate.
3. This machine adopts Japanese SMC pneumatic components, a more stab-magnetic clutch, energy saving, and no noise.
4. Electic adopts high quality. It’s saving and steady.
MEASUREMENT W410×L460×H420MM
Semi-automatic stripping crimping machine, The multi-core sheathed cable stripping and ferrules crimping machine is specially designed for processing the core wires of multi-conductor sheathed cable and single wire, just change the crimping applicator for the different terminal.
1. Special for stripping and crimping the inner core of the sheathed cable at one time.
2. Adopt advanced frequency conversion technology control, energy-saving, and environmental protection.
3. Stripping cylinder drive, high speed, and accurate positioning.
4. The waste after stripping is vacuum suctioned, and the work area is clean and tidy.
5. The working speed can be adjusted through the operation panel to adapt to the operator’s proficiency.
| Model | WPM-2008A2 1.5T | WPM-2008A2 2.0T | WPM-2008A2 3.0T |
| Available Wire Size | AWG32 – AWG20# | AWG32# – AWG20# | AWG24# – AWG16# |
| Stroke | 30mm | 40mm | 50mm |
| Stripping Length | 1.0-10mm | 1-8mm | 1-8mm |
| Length Tolerance | 0.05-0.1mm | 0.05-0.1mm | 0.05-0.1mm |
| Crimp Force | 1.5Ton | 2.0Ton | 3.0Ton |
| Power Supply | 110/220VAC, 50/60Hz | 110/220VAC, 50/60Hz | 110/220VAC, 50/60Hz |
| Air Connection | 0.3-0.6MPa | 0.3-0.6MPa | 0.3-0.6MPa |
PRODUCTION CAPACITY 5000-6000pcs/h
