Automatic Wire Stripping Machine – Max 12mm Cable, LCD Display, High Accuracy HT2-6

Weight：43KGMachine dimension: 470515345mmPower：550WOperation interface: English/Chinese (LCD display)Wire length range: 1～10000mmLength accuracy： ± (0.002xL)mmWire cross section: Maximum outer diameter: 12mm (Round sheath wire)Max conduit inside diameter:￠13mmWire material:PVC,Teflon,Braided,Fiberglass wireStrip length：Full stripping of front end:0-200;Full stripping of rear end:0-100mmBlade material: High-speed steelTransport speed: (L=200MM piece/hour） 3000-4000 piecesDriving mode: six-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)Applications:Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing. Optimal stripped wire PVC, teflon, glass wire, etc.

Description
Reviews (0)

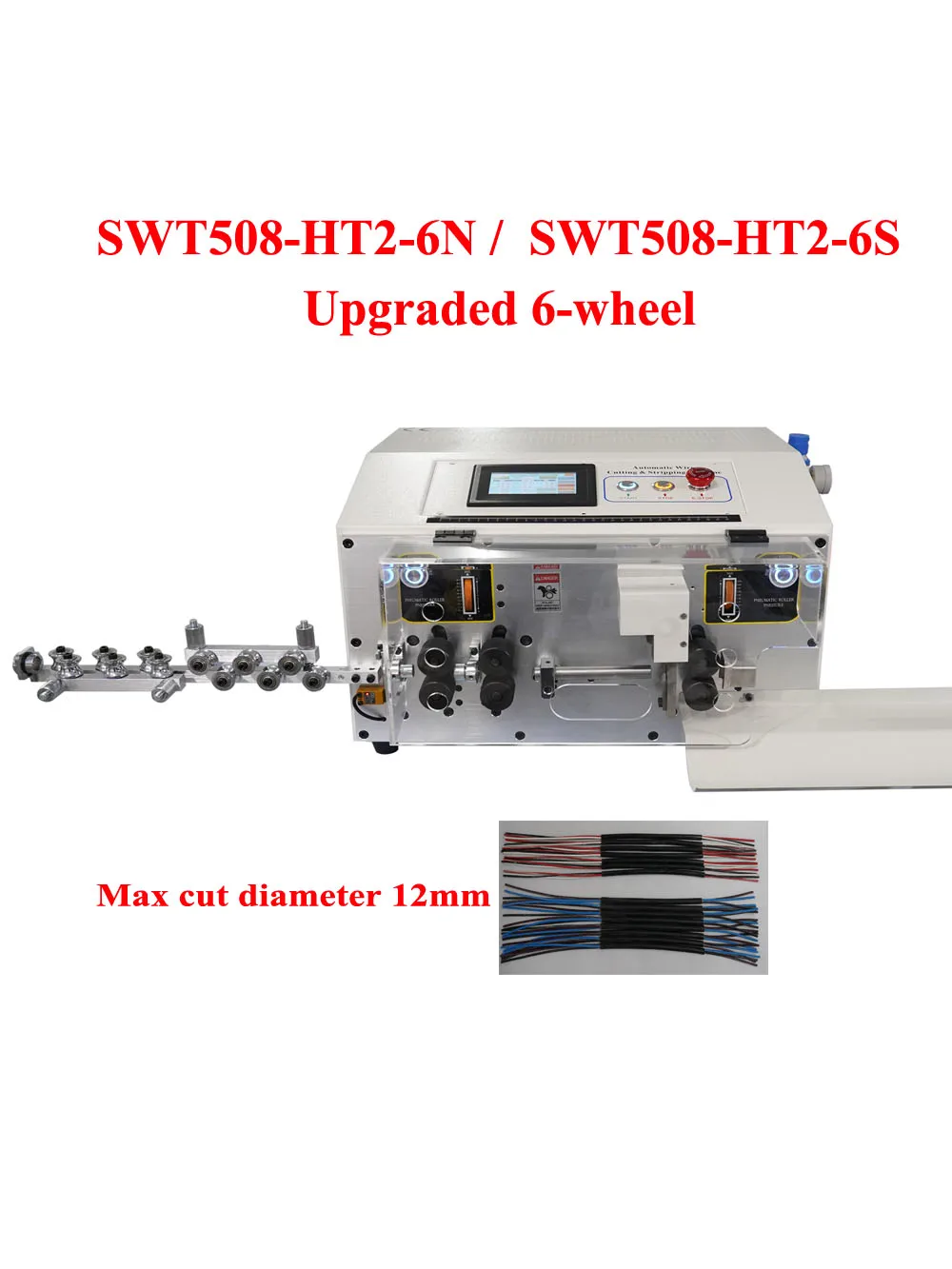

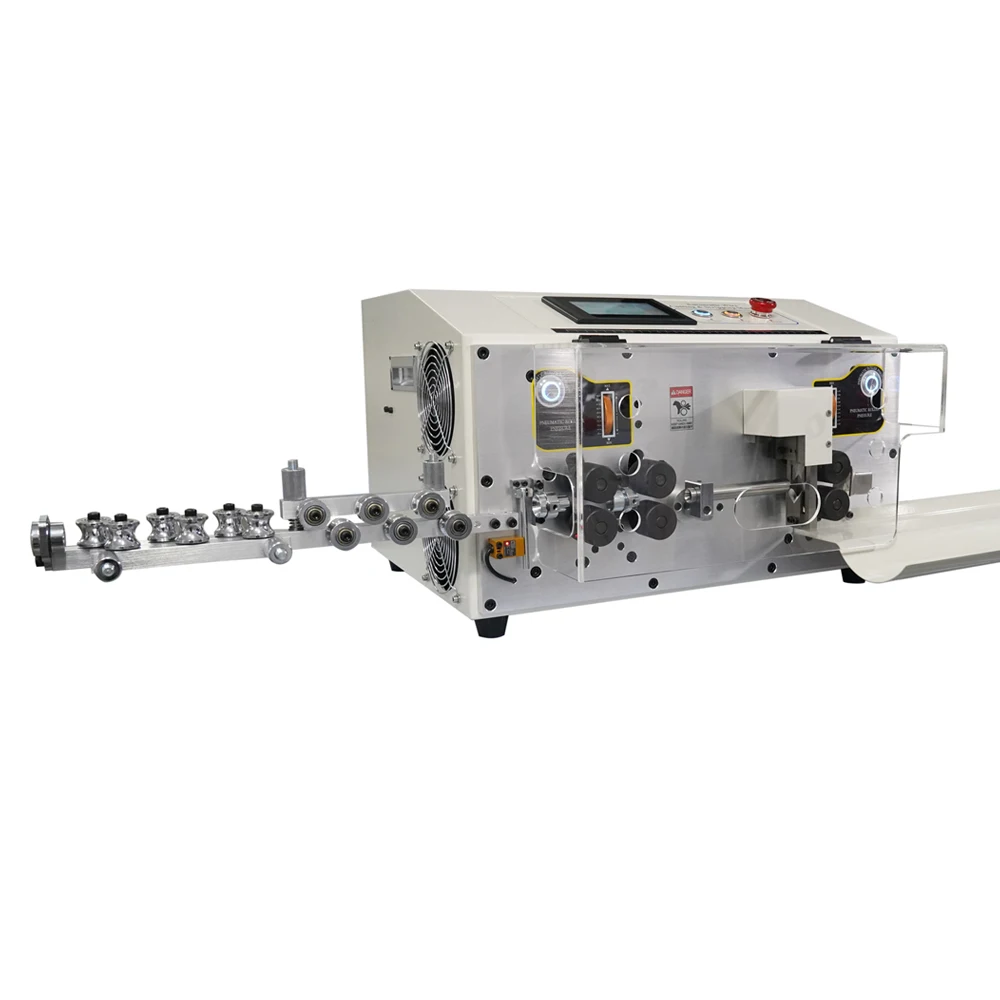

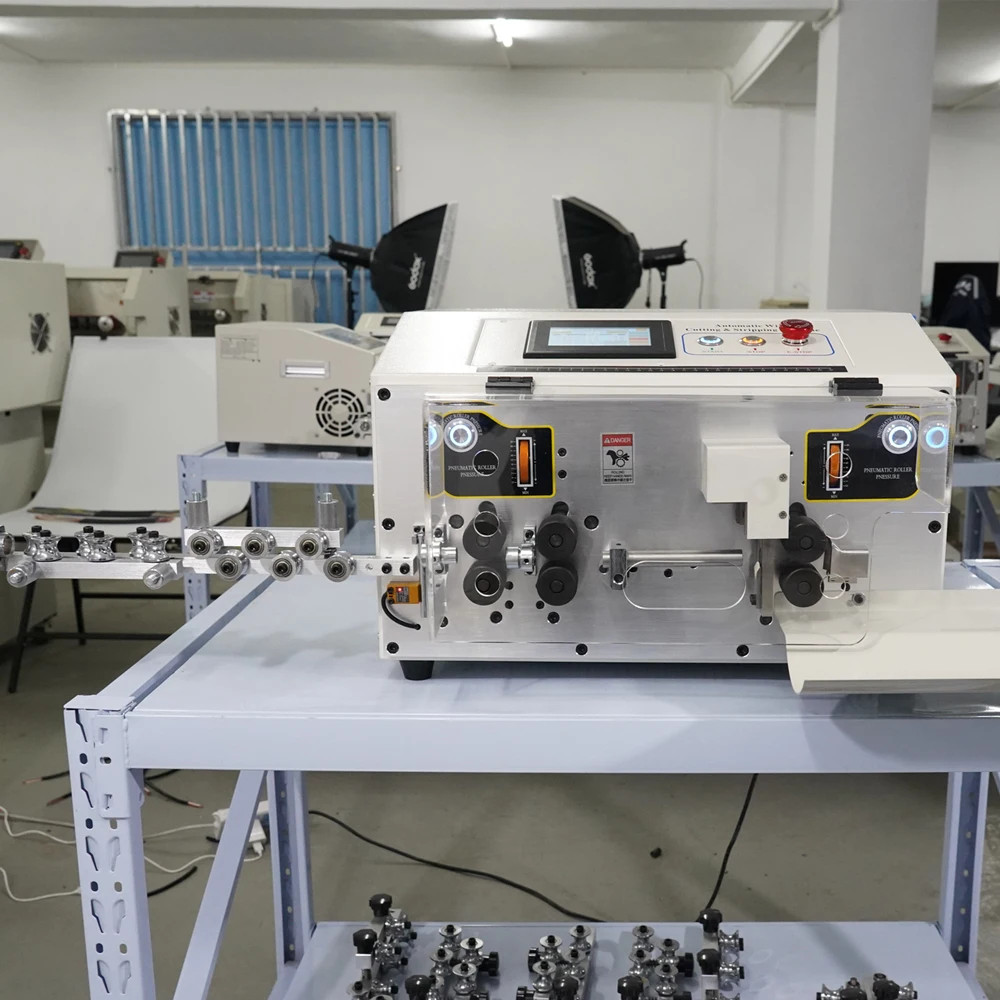

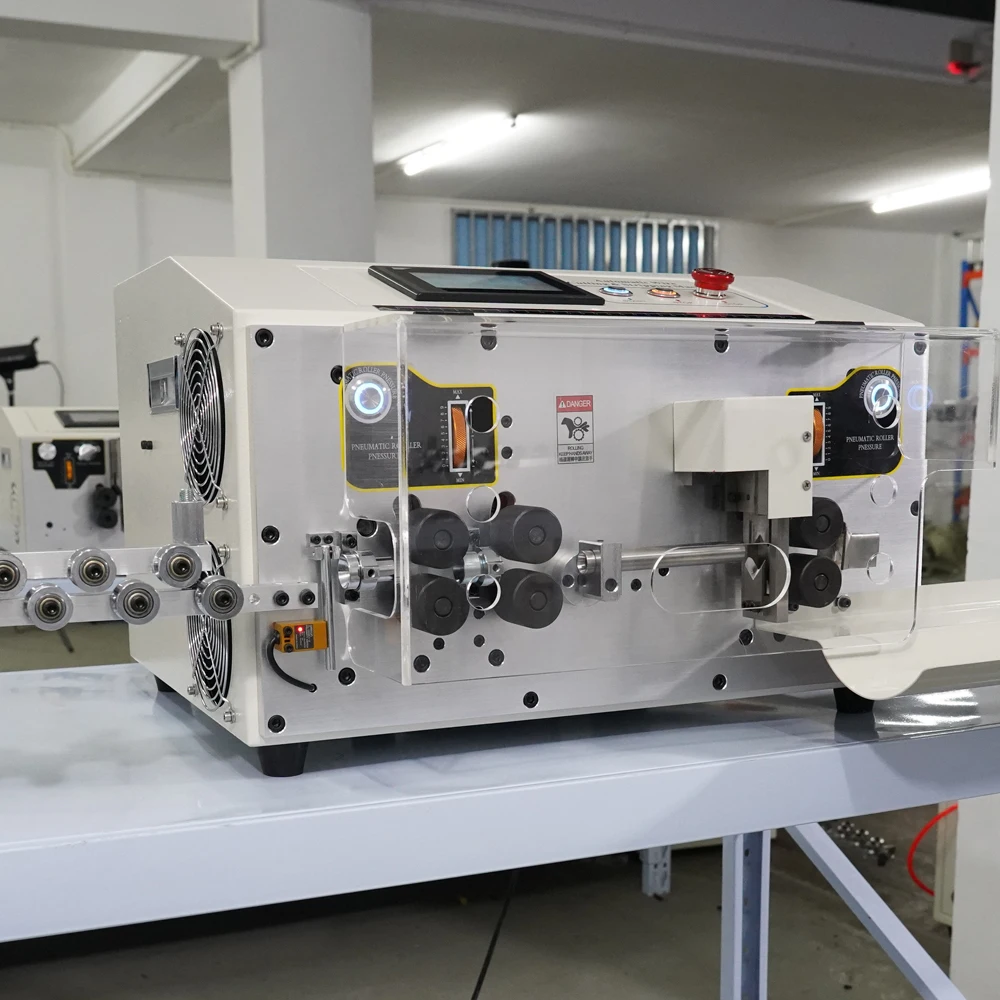

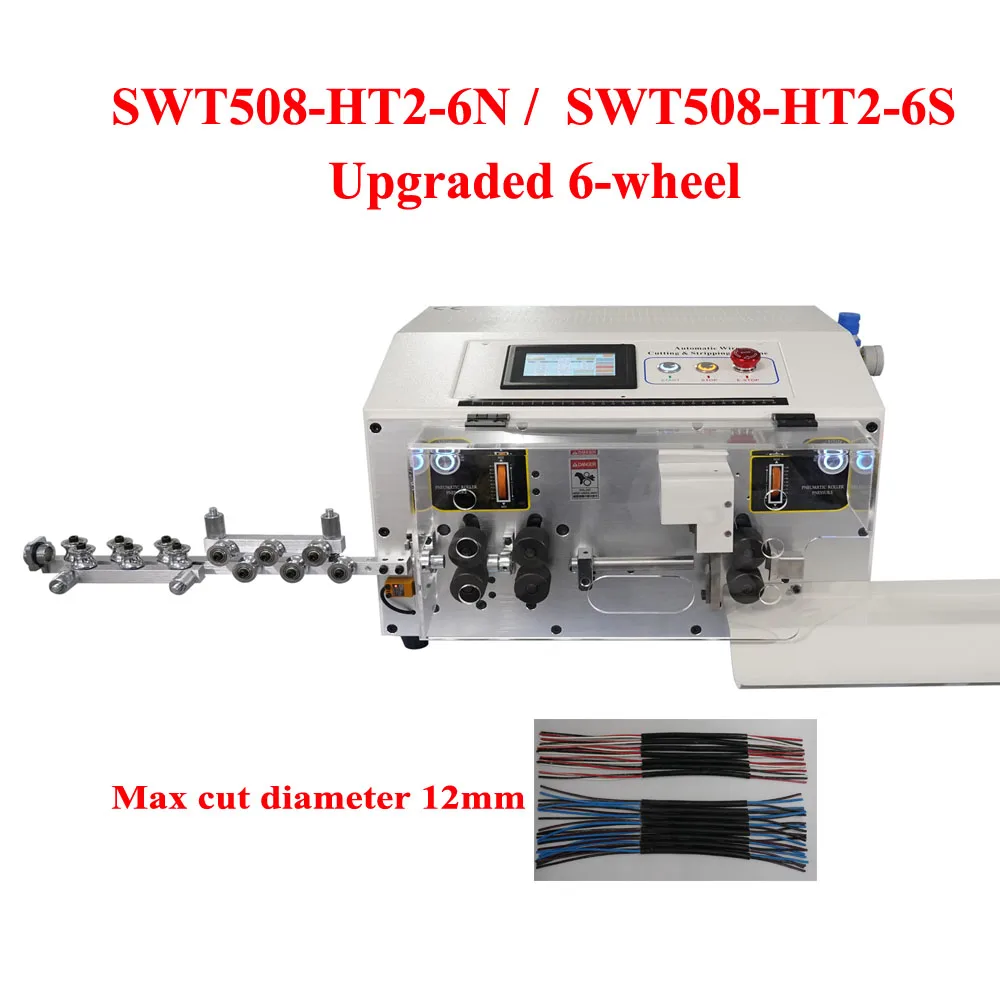

HT2-6 Six-Wheel Drive Automatic Computer Wire Stripping Machine

The HT2-6 is a powerful and highly efficient computer wire stripping machine designed to meet a wide range of complex wire processing needs. Equipped with a high-definition LCD interface and a robust six-wheel drive system, it performs cable cutting and stripping with precision and speed. It is the ideal solution for boosting productivity in industries such as electronics, automotive wiring harnesses, and home appliances.
Click here for more details.

Product Highlights

Powerful Processing: Handles round sheathed cables up to 12mm in outer diameter for broad applicability.
High-Precision Operation: Achieves a cutting length accuracy of ±(0.002xL)mm, ensuring every cut is exact.
High-Efficiency Production: Processes 3,000-4,000 pieces per hour (at L=200mm), significantly increasing output.

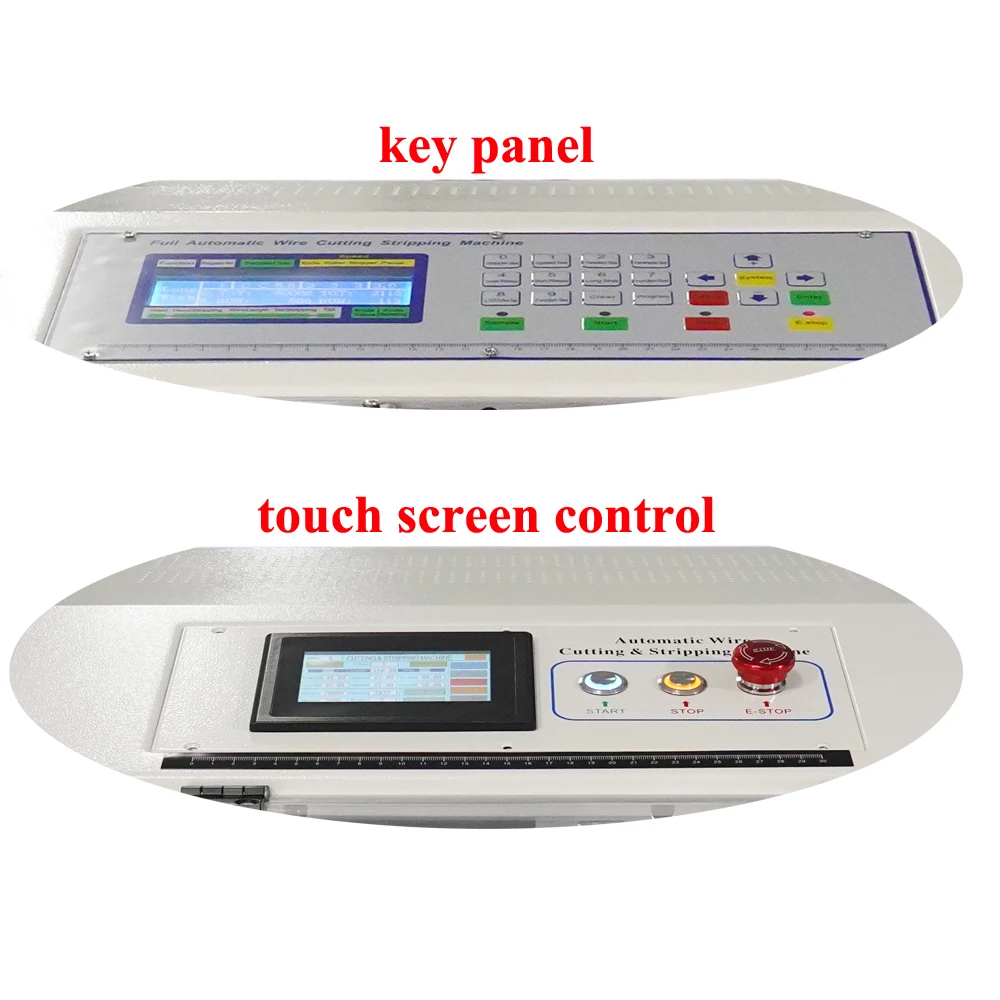

User-Friendly Interface: Features a bilingual (English/Chinese) LCD display for intuitive and easy operation.
Durable & Reliable: Built with high-speed steel blades and a silent hybrid stepper motor for stable performance and a long service life.
Strong Driving System: The six-wheel drive system advances 0.1mm per step, ensuring smooth and powerful wire feeding.

Technical Specifications

Model: HT2-6
Machine Weight: 43 KG
Dimensions: 470 x 515 x 345 mm
Power: 550W
Operation Interface: English/Chinese LCD Display
Cutting Length Range: 1 – 10,000 mm
Cutting Length Accuracy: ± (0.002 x L) mm
Applicable Wire OD: Max. 12mm (Round Sheath Wire)
Max. Conduit Inner Diameter: ￠13mm
Applicable Wire Types: PVC, Teflon, Braided Wire, Fiberglass Wire
Stripping Length: Front End: 0-200mm | Rear End: 0-100mm
Blade Material: High-Speed Steel
Drive System: Six-Wheel Drive (Silent Hybrid Stepper Motor)
Processing Speed: 3,000-4,000 pcs/hr (based on L=200mm)

Applications

Widely used for wire processing in the electronics industry, automotive wiring, electrical appliances, motors, lamps and lanterns, toys, and various other products. Provides optimal stripping for PVC, Teflon, fiberglass, and other wire types.
