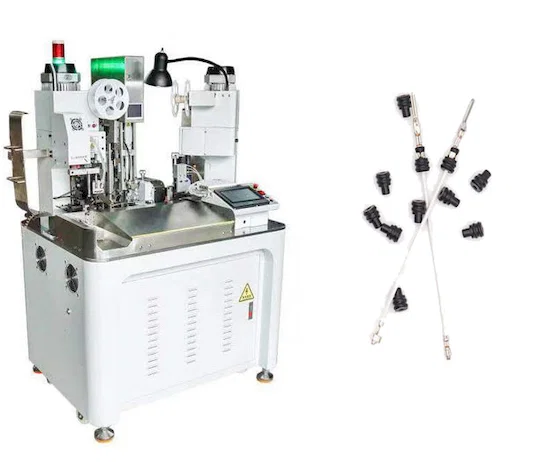

The wire crimping and water seal insertion machine, also known as the Water Seal Insertion Machine or Insertion Machine, is a highly efficient and automated piece of equipment. This particular crimping machine is designed to perform automatic wire crimping on both sides and also insert a water seal. It is capable of automatically feeding the water seal through a vibration plate and inserting it prior to crimping the terminals.

The power source for this machine is AC220v/50/60hz. It offers several important functions including wire cutting, stripping on both ends, one-side or both-sides crimping, and inserting a cable water seal. With a capacity ranging from 2000 to 3000 pieces per hour when the wire length is 150MM (L=150MM), it is highly productive. The wire range it can handle is from 0.3 to 2.5 square millimeters, which corresponds to AWG28# to AWG14#. The cutting length can vary from 45 to 3000 millimeters and can be customized to meet specific requirements. The cutting accuracy is extremely precise at 0.5mm plus cutting length multiplied by 0.2%. The stripping length can be adjusted from 0.5 to 8 millimeters and can also be customized. This machine is suitable for use with OTP applicator, European applicator, and Korea applicator. The crimping stroke is typically 30mm, but a 40mm stroke is available as an option. The required air pressure for proper operation is 5 to 6 kilograms force.

Power: AC220v/50/60hz
Functions: Wire cut, both ends striping, one side/both sides crimping and inserting cable water seal.
Capacity: 2000pcs~3000pcs/h(L=150MM)
Wire range:0.3~2.5sqmm, AWG28#-AWG14#
Cutting length:45-3000mm(can be customized)
Cutting accuracy: 0.5mm+cutting lengthx0.2%
Stripping length: 0.5-8mm(can be customized)
Suitable applicator: OTP applicator, European applicator, and Korea applicator
Crimping stroke:30mm(40mm for optional)
Air pressure: 5-6kgf
Processing result display
