Auto Multi-Terminal Cable Crimping WPM-555

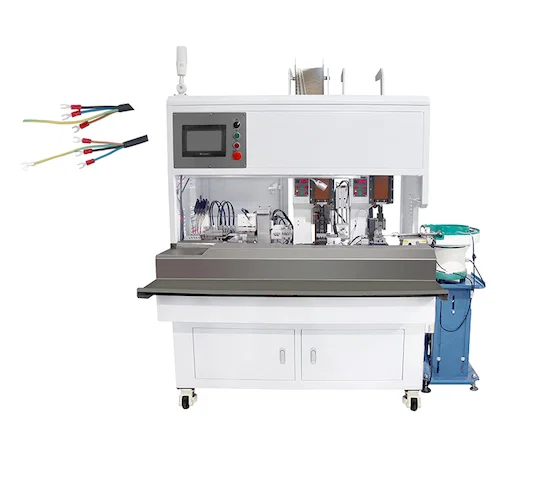

Auto Multi-Terminal Cable Crimping Machine WPM-555

Introducing the fully automatic cable crimping machine, engineered to streamline your wiring tasks with unmatched efficiency. This advanced machine adeptly handles various terminals on inner cores of differing lengths, including specialized solar wires. Whether working with 3-core or 4-core power cords, it offers the flexibility to strip and crimp even wires with length discrepancies of up to 200mm. Equipped with cutting-edge Mitsubishi servo and a ball screw drive, this machine guarantees precise wire feeding and seamless operation. The user-friendly touch screen allows easy adjustments for stripping/cutting lengths, cutting depths, and crimping positions, making it suitable for a wide range of wire sizes and terminal types including ground ring, push-in 187/250, and customizable flag shape terminals. Elevate your production efficiency and accuracy with this essential tool for any electrical project.

Category: Strip Crimp Machine

Description
Reviews (0)

Headline: Maximize Efficiency with the WPM-555: The Fully Automatic Cable Crimping Machine for Diverse Terminal Applications

Introduction:

Introducing the WPM-555 Fully Automatic Cable Crimping Machine, a revolutionary solution designed to streamline your multi-core cable processing. This advanced Wire Crimping Machine excels in handling complex tasks, specifically engineered for cutting, stripping, and crimping inner cores of 3-core and 4-core sheathed cables, even with varying lengths. From standard applications to specialized needs like Solar Wire Crimping Machine tasks, the WPM-555 delivers unmatched precision and efficiency. This robust Cable Crimping Machine is also an exceptional Cable End Crimping Machine, ensuring consistent and high-quality terminations for a wide range of terminal types.

Key Features and Benefits:

Fully Automatic Processing for Unparalleled Speed: Automate your cable processing workflow with this Fully Automatic Cable Crimping Machine. It seamlessly integrates cutting, stripping, and terminal crimping for inner cores of 3 and 4-core sheathed cables, significantly increasing production speed and reducing manual labor.
Handles Variable Wire Lengths with Ease: Designed to process wires with inconsistent lengths, the WPM-555 expertly manages length differences from 0 to 200 mm, providing exceptional versatility for complex cable assemblies.
Simultaneous Crimping of Different Terminals: Boost your flexibility and handle diverse project requirements. This machine can simultaneously crimp different terminals onto different core wires, optimizing your production line for varied applications.
High-Precision Servo Control: Equipped with three Mitsubishi servo motors and ball screw drives, the WPM-555 ensures exceptional precision in wire feeding, stripping, and terminal crimping. This advanced servo system guarantees smooth and synchronized operations, resulting in consistent and high-quality output.
User-Friendly Touch Screen Operation: Simplify machine control and operation with an intuitive touch screen interface. All adjustments, including stripping and cutting lengths, cutting depth, and crimping positions, are easily managed via the touch screen, enhancing operator convenience and reducing setup time.
Versatile Terminal Compatibility: The WPM-555 is compatible with a wide range of terminal types, including ground ring terminals, push-in 187/250 terminals, and flag-shaped terminals. Customization for horizontal terminals is also available, further expanding its application range as a versatile Wire Crimping Machine for Terminals.
Integrated Defect Detection System: Minimize production errors and ensure consistent quality. The machine’s automatic detection function effectively identifies and flags defective products, enabling immediate corrective action and reducing waste.
High Capacity for Enhanced Productivity: Achieve impressive production rates with a capacity of 500-550 pcs/h for 3-core cables and 450-500 pcs/h for 4-core cables, allowing you to meet demanding production targets efficiently.
Robust and Reliable Construction: Built to withstand demanding production environments, the WPM-555 is a robust machine with a substantial weight of 550 KG and dimensions of 1500 * 970 mm * 1700 mm, ensuring long-term reliability and consistent performance.

Technical Specifications:

Feature	Specification
Model	WPM – 555
Keyword Focus	Cable Crimping Machine, Wire Crimping Machine, Fully Automatic Cable Crimping Machine for Different Terminals on Inner Cores of Various Lengths, Wire Crimping Machine for Terminals, Solar Wire Crimping Machine, Cable End Crimping Machine
Cable Type	3 or 4-core sheathed cable
Cutting Length Difference	0 – 200 mm
Cutting Precision	±0.1(0.1 + 0.005*L) mm, where L = cutting length
Stripping Length	0 – 15 mm
Crimping Force	3T
Capacity	3-core: 500 – 550 pcs/h, 4-core: 450 – 500 pcs/h
Power Supply	AC220/110V/50/60HZ
Machine Size	1500 * 970 mm * 1700 mm
Weight	550 KG
Terminals Applicable	Ground ring, push-in 187/250, flag-shaped (horizontal customizable)
Servo Motors	Mitsubishi (3 servos)
Drive System	Ball screw drives
Control System	Touch screen

Applications:

The WPM-555 Cable Crimping Machine is ideally suited for a wide range of applications requiring precise and efficient crimping of multi-core sheathed cables with varied terminal types, including:

Power cord manufacturing
Appliance wiring harnesses
Automotive cable assemblies
Industrial control systems
Solar Wire harness production
And more!

Conclusion:

Invest in the WPM-555 Fully Automatic Cable Crimping Machine and experience a significant leap in your cable processing capabilities. This high-performance machine delivers exceptional precision, versatility, and efficiency, making it an indispensable asset for modern manufacturing. Contact us today to learn more and request a customized solution for your specific needs.
