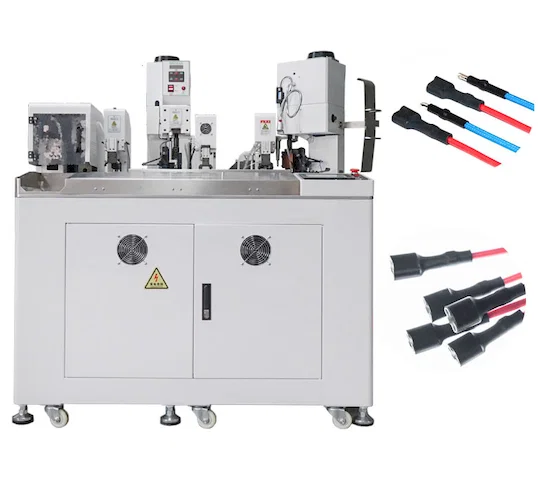

Key Features and Benefits of the Automatic Crimp Heat Shrink Machine:

1. Fully Automated Multi-Process Integration for Maximum Efficiency:

Eliminate bottlenecks and manual steps with this all-in-one powerhouse. The Automatic Crimp Heat Shrink Machine performs a complete sequence of operations: wire cutting, precise stripping, accurate crimping, shrink tube cutting, precise tube insertion, reliable pulling, and efficient heat shrink processing in the correct position. This full automation dramatically enhances production capacity, allowing you to meet demanding deadlines and scale your wire harness manufacturing effortlessly. Experience a truly streamlined Crimp Heat Shrink process.

2. Wide Wire Processing Range for Versatile Applications:

Adapt to diverse project needs with the machine’s wide processing wire range, handling wires from AWG24# to AWG12#. This flexibility ensures the Automatic Crimp Heat Shrink Machine is suitable for a vast array of applications, from delicate electronics to more robust industrial wiring. No matter the wire gauge, achieve consistent and high-quality Crimp Heat Shrink connections.

3. User-Friendly Touch Screen Control for Precision and Ease of Use:

Take full control with the intuitive LCD touch screen interface. All settings and adjustments are conveniently managed through this user-friendly panel, offering exceptional ease of use and pinpoint precision. The touch screen control makes setting up even complex Crimp Heat Shrink operations straightforward and efficient.

4. High-Precision Motor Driven System for Exceptional Accuracy:

Achieve unparalleled accuracy in every operation. The LCD is controlled by a high-precision motor, guaranteeing exceptional accuracy in cutting, stripping, crimping, and shrink tube insertion. This level of precision is absolutely essential for producing consistently high-quality wire harnesses, particularly when performing delicate Crimp Heat Shrink applications where accuracy is critical.

5. Integrated Detector System for Reliable Performance and Quality Assurance:

Ensure smooth operation and consistently reliable results with the integrated detector system. This vital system proactively monitors various critical conditions, including wire presence, terminal presence, air pressure, instances of bad crimping, and successful tube insertion. This comprehensive detection system acts as a quality control guardian, guaranteeing the Automatic Crimp Heat Shrink Machine operates flawlessly and produces consistently reliable, high-quality output, minimizing waste and maximizing uptime.

6. Versatile Crimping Die Compatibility for Diverse Needs:

Adapt to your existing tooling and diverse production requirements. The machine is designed to be compatible with OPT side-feed/end-feed crimping dies as well as Korean and European crimping dies. This versatility allows seamless integration with your current die inventory and caters to various global standards for crimped and heat shrunk connections.

7. Optional Crimping Force Monitor (CFM) for Enhanced Quality Control:

Elevate your quality control to the next level. The Automatic Crimp Heat Shrink Machine can be equipped with a CFM (crimping force monitor). This advanced feature provides real-time monitoring and control of the crimping force during processing. By ensuring consistent crimping force, the CFM further enhances the quality of finished products, guaranteeing reliable and durable Crimp Heat Shrink terminations.

8. High Capacity and Efficient Power Consumption for Increased Productivity:

Boost your output without excessive energy costs. With a high capacity ranging from 1800pcs to 2200pcs per hour, this machine is a productive powerhouse for any wire harness production line. Operating on standard AC220v/50/60hz power, it combines high performance with efficient energy consumption, maximizing your return on investment in Crimp Heat Shrink automation.

Technical Specifications:

• Main Functions: Wire Cutting & Stripping, Double-Sided Crimping, Shrink Tube Insertion & Heating (Crimp Heat Shrink)
• Wire Range: AWG24# – AWG12#
• Cutting Length: 75-9999mm (Customizable)
• Cutting Accuracy: ±0.5mm + (Cutting Length x 0.2%)
• Stripping Length: 0-8mm
• Crimping Force: 2.0T
• Applicator Compatibility: OPT Side-feed/End-feed, Korean, European Crimping Dies
• Air Pressure: 5-6kgf
• Dimensions: 18008001860MM
• Weight: Approx. 600kg

Invest in the Future of Your Wire Harness Manufacturing with the Automatic Crimp Heat Shrink Machine!

The Automatic Crimp Heat Shrink Machine is the ultimate solution for businesses seeking to optimize their wire harness production. Achieve unmatched efficiency, precision, and quality in your Crimp Heat Shrink applications. Contact us today to learn how this game-changing machine can transform your production line and provide you with a competitive edge!
